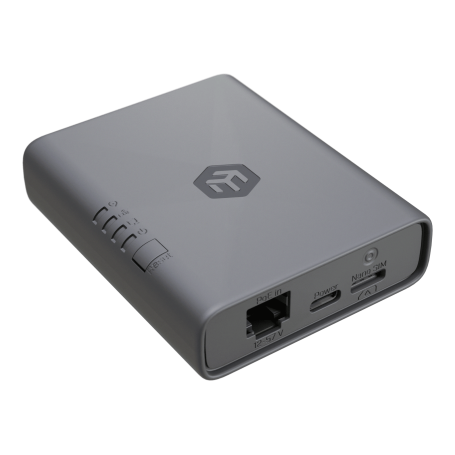

Mikrotik KNOT Embedded LTE4 Global gateway
KNOT Embedded LTE4 in a Global (EG25-G) version with expanded LTE band support for North America and other international markets. Industrial LTE/BLE/GNSS connectivity that fits anywhere. Originally designed for coffee and vending machines – perfect for all kinds of industrial automation.
Brochure: KNOT Embedded LTE4 Global
KNOT Embedded LTE4 Global is a tiny but powerful industrial LTE gateway designed for integrators, automation specialists, and IoT system builders. It fits into tight spaces, mounts directly on a DIN rail, and delivers reliable LTE Cat4 connectivity with Bluetooth and GNSS support.
The built-in Bluetooth scanner supports Long Range Bluetooth and Extended Advertising, enabling reliable communication with MikroTik Bluetooth tags and other BLE sensors. Gather telemetry, track assets, and securely transmit data over LTE from a single compact device.
Use it as a primary gateway, a backup link, or an IoT data collection node – everything is powered by RouterOS for maximum flexibility.
MikroTik Connectivity is available for the USA region
One simple plan provides dual-operator access via AT&T and US Cellular for reliable nationwide coverage. Data plans follow the same pricing structure as our EU Connectivity offer.
With MikroTik eSIM, you can activate a data plan directly from your MikroTik account and get online within minutes. No physical SIM cards, no carrier contracts, no activation delays. Ideal for IoT deployments, remote installations, backup connectivity, and low-usage setups where fast and simple deployment matters.
Sensor-ready GPIO header : for simple automation and monitoring (Digital input/Analog Input/OD output). All pins are 24V tolerant.
Powered by RouterOS : full networking stack, VPNs, firewall, SMS control and notifications, automation, remote management, and so much more
The unit requires external antennas – choose the models that match your environment and customize the KNOT to your specific needs.
Le KNOT Embedded LTE4 est conçu pour les environnements où l'espace est limité mais où la fiabilité est essentielle :
Smart city infrastructure (parking, sensors, counting) |
Monitoring of vending machines and similar equipment |
Industrial automation cabinets |
Environmental and utility monitoring |
Vehicle and asset tracking with GNSS |
Retail kiosks, payment terminals, digital signage |
LTE backup connectivity for existing Ethernet devices |
IoT gateways for sensors and BLE beacons |
Whether you're building a new system or adding LTE technology to an existing setup, KNOT Embedded LTE4 fits right in. It's easy to integrate, easy to deploy, and designed to operate in harsh environments—from smart city deployments to industrial automation and mobile tracking.
- CPU
- Cortex A7
- Cores
- 1
- CPU Frequency
- 1.2 GHz
- CPU Architecture
- ARM 32bit
- RAM
- 256 MB
- OS
- RouterOS v7
- RouterOS License
- 3
- Storage
- 512 MB
- 10/100/1000 Ethernet ports
- 1
- USB ports
- 1
- USB slot type
- USB-C (powering only)
- SIM slots
- 1
- eSIM
- 1
- DC inputs
- 2
- DC input port(s)
- Ethernet, USB-C
- DC input Voltage
- 12-57 V
- PoE in
- 802.3af/at
- PoE-in input Voltage
- 12-57 V
- Max power consumption
- 7 W
- LTE Category
- 4 (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 2 (1900 MHz) / 4 (1700 MHz) / 12 (700 MHz) / 13 (700 MHz) / 18 (800 MHz) / 19 (800 MHz) / 25 (1900 MHz) / 26 (850 MHz) / 28 (700 MHz)
- LTE TDD bands
- 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 39 (1900 MHz)
- 3G Category
- R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands
- 1 (2100 MHz) / 5 (850 MHz) / 8 (900 MHz) / 2 (1900 MHz) / 4 (1700 MHz) / 6 (850 MHz) / 19 (800 MHz)
1 (2100MHz) / 8 (900MHz) - 2G Category
- Class12
- 2G bands
- 3 (1800MHz) / 8 (900MHz)
- Bluetooth version
- 5.1
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- Dimensions
- 90 x 70 x 22 mm
- Operating temperature
- -40°C to +70°C
