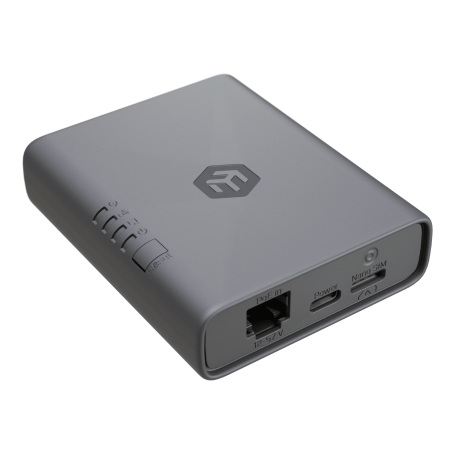

Mikrotik KNOT Embedded LTE4 gateway
Industrial LTE/BLE/GNSS connectivity that fits anywhere. Originally designed for coffee and vending machines – perfect for all kinds of industrial automation.
Brochure: KNOT Embedded LTE4
The KNOT Embedded LTE4 is a compact yet powerful industrial LTE gateway designed for system integrators, automation specialists, and IoT system builders. It fits into tight spaces, mounts directly onto a DIN rail, and offers reliable LTE Cat4 connectivity with Bluetooth and GNSS support.
Use it as a primary gateway, backup link, or IoT data collection node: everything is powered by RouterOS for maximum flexibility.
Sensor-ready GPIO header : for simple automation and monitoring (Digital input/Analog Input/OD output). All pins are 24V tolerant.
Powered by RouterOS: full network stack, VPN, firewall, SMS control and notifications, automation, remote management, and much more.
The device requires external antennas: choose the models suited to your environment and customize the KNOT to meet your specific needs.
Smart city infrastructure (parking, sensors, counting) |
Monitoring of vending machines and similar equipment |
Industrial automation cabinets |
Environmental and utility monitoring |
Vehicle and asset tracking with GNSS |
Retail kiosks, payment terminals, digital signage |
LTE backup connectivity for existing Ethernet devices |
IoT gateways for sensors and BLE beacons |
Whether you're building a new system or adding LTE technology to an existing setup, KNOT Embedded LTE4 fits right in. It's easy to integrate, easy to deploy, and designed to operate in harsh environments—from smart city deployments to industrial automation and mobile tracking.
- CPU
- Cortex A7
- Cores
- 1
- CPU Frequency
- 1.2 GHz
- CPU Architecture
- ARM 32bit
- RAM
- 256 MB
- OS
- RouterOS v7
- RouterOS License
- 3
- Storage
- 512 MB
- 10/100/1000 Ethernet ports
- 1
- USB ports
- 1
- USB slot type
- USB-C (powering only)
- SIM slots
- 1
- eSIM
- 1
- DC inputs
- 2
- DC input port(s)
- Ethernet, USB-C
- DC input Voltage
- 12-57 V
- PoE in
- 802.3af/at
- PoE-in input Voltage
- 12-57 V
- Max power consumption
- 6 W
- LTE Category
- 4 (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands
- 1 (2100MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) /20 (800MHz) / 28A (700 MHz)
- LTE TDD bands
- 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz)
- 3G Category
- R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands
- 1 (2100MHz) / 8 (900MHz)
- 2G Category
- Class12
- 2G bands
- 3 (1800MHz) / 8 (900MHz)
- Bluetooth version
- 5.1
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- Dimensions
- 90 x 70 x 22 mm
- Operating temperature
- -40°C to +70°C
