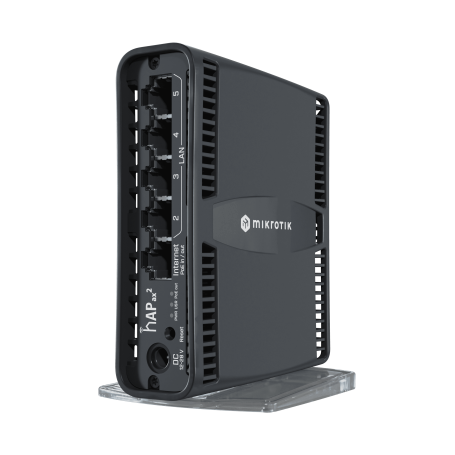

Mikrotik hAP ax² WIFI router
The next generation of home access point perfection.
Futuristic design. Classic value.
Brochure: hAP ax²
It’s time to supercharge your network with Wifi6. The hAP ax² has everything you might need in a primary access point.
The wireless signal is now stronger than ever. Here are the two main ingredients of hAP ax’s success: a state-of-the-art dual-band, dual-chain 4-4.5 dBi radio, and the 802.11ax standard with Wave2 support. That means up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum
Some might ask – why do we even need higher wireless speeds? Well, countless use cases have been previously impossible or difficult to pull off. For example, working with large media files over the wireless network – without the need to download and upload everything.
The wireless interface supports 802.11ax and is backward compatible with older wireless standards. Older client devices that only support 802.11ac will still benefit from multiple additional 802.11ac Wave 2 features, such as MU-MIMO and explicit beamforming.
The modern quad-core CPU running at 864 MHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with the most advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.
Like the previous models, hAP ax² can be mounted vertically, horizontally, or even on the wall – without sacrificing the strong signal
- CPU
- IPQ-6010
- Cores
- 4
- CPU Frequency
- 864 MHz
- CPU Architecture
- ARM 64bit
- RAM
- 1 GB
- OS
- RouterOS v7
- RouterOS License
- 4
- Storage
- 128 MB
- Ethernet Combo ports
- 0
- 10/100/1000 Ethernet ports
- 5
- USB ports
- 0
- SIM slots
- 0
- 2.4 GHz Wifi chains
- 2.0
- 2.4 GHz antenna gain (dBi)
- 4.0
- 5 GHz Wifi chains
- 2
- 5 GHz antenna gain (dBi)
- 4.5
- DC inputs
- 2
- DC input Voltage
- 12-28 V
- PoE in
- Passive PoE
- PoE-in input Voltage
- 18-28 V
- PoE-out ports
- Ether 1
- PoE-out type
- Passive PoE
- Max power consumption
- 12 W/27 W
