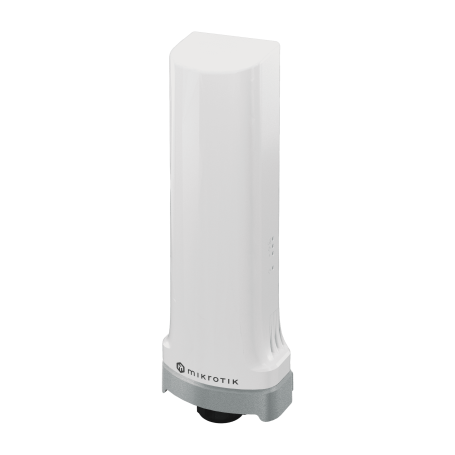

MikroTik Outdoor KNOT Gateway LR8 with Wi-Fi 6 and LTE (IP66)

6x currently in stock

A rugged IP66 IoT gateway combining BLE 5.1, 868 MHz LoRa®, Wi-Fi, Gigabit Ethernet, LTE Cat 1 bis, and GNSS.

Brochure: KNOT Gateway LR8

€110.48 Tax excluded

€110.48 Tax excluded

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

In stock

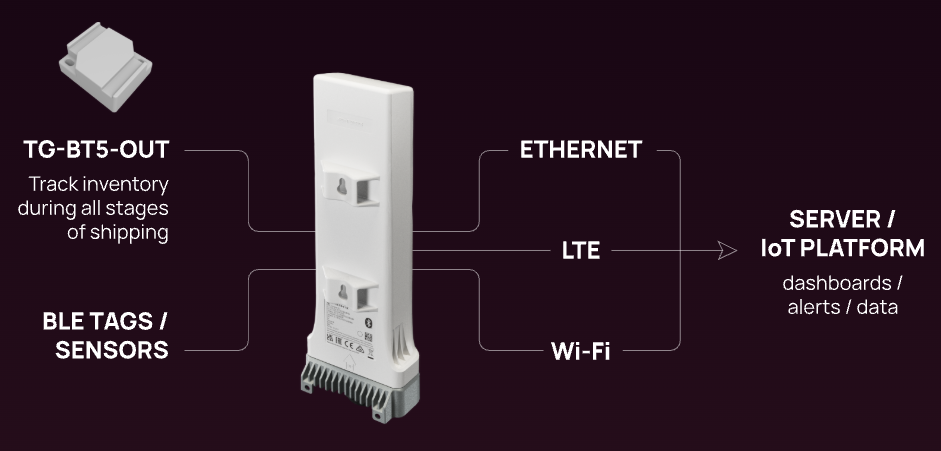

With the new KNOT Gateway, you can follow tagged equipment, pallets, containers, tools, and other assets as they pass through warehouses and terminals. But there’s more: you can tie various generations of tech together! The KNOT Gateway brings remote meters, sensors, and other IoT devices into your network with BLE and long-range sub-GHz connectivity.

Whatever language your IoT devices speak, the KNOT gets the conversation going !

- BLEZ 5.1 : turn Bluetooth broadcasts into useful, actionable data: track tagged assets, monitor telemetry, filter advertisements, and use RouterOS scripting to decide what happens next.

- LONG-RANGE IoT : go beyond Bluetooth with 868 MHz LoRa® on KNOT Gateway LR8 or 915 MHz Wi-Fi HaLow on KNOT Gateway HL9 – two sub-GHz options for IoT deployments that need to reach even further.

- THREE WAYS BACK TO YOUR SERVERS : use Gigabit Ethernet, 2.4 GHz Wi-Fi, or LTE Cat 1 bis for backhaul. Put the gateway where your devices are, without depending on Ethernet being available there.

- ROUTEROS DOES THE REST : filter data locally, build your own logic with scripts, publish information using MQTT or HTTP, and integrate it into your preferred IoT platform with custom dashboards, notifications, and reports.

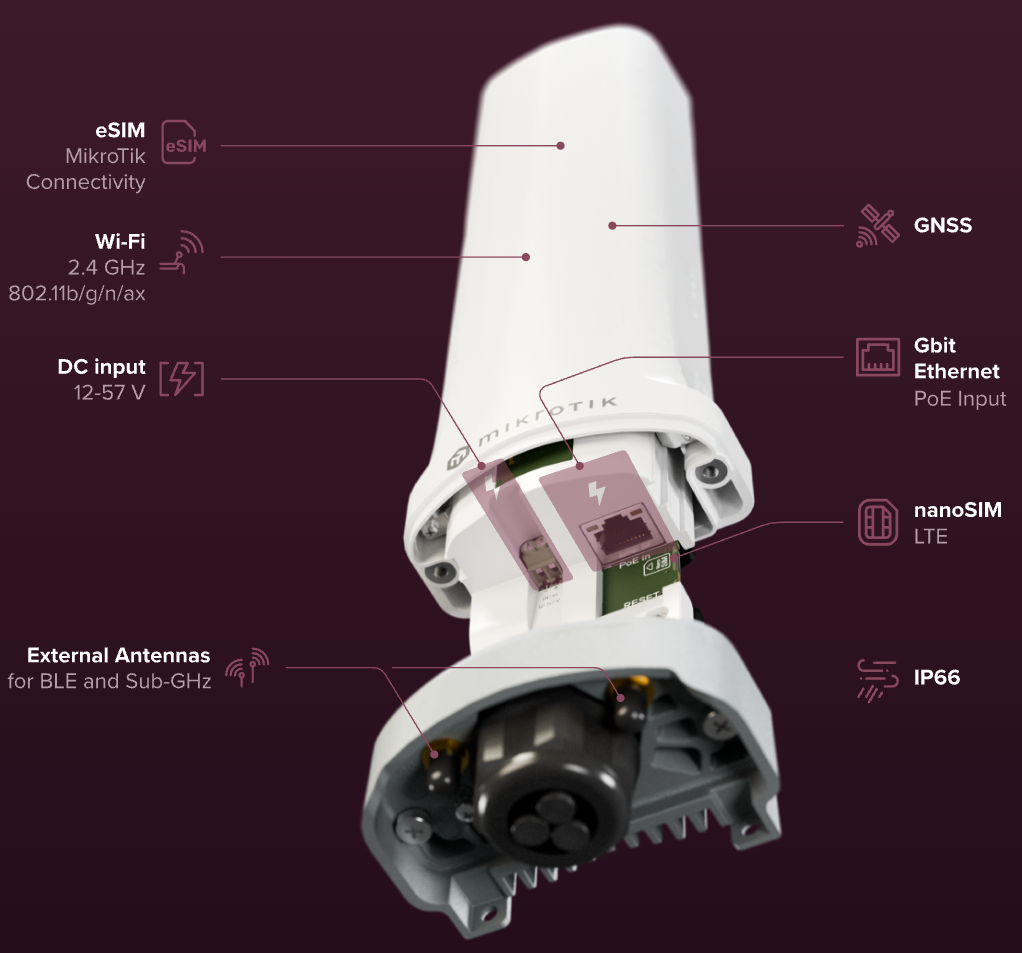

IP66 protection, PoE-in, 12–57 V DC input, surge protection, and integrated antennas for BLE, Wi-Fi, LTE, Sub-GHz, and GNSS let you place KNOT closer to the devices it’s actually serving. External antenna connectors for BLE and Sub-GHz give you extra flexibility when the installation calls for it.

And eSIM/MikroTik connectivity gives you even more flexibility – no need for an existing internet connection. You can active data via a simple MikroTik account login!

MikroTik Connectivity offers preloaded eSIM profiles all over the world, multi-operator switching, and reliable remote management with multi-network access for roaming and backup purposes.

MikroTik
L14G-2ax-BT5-LR8&EG800K
6 Items
4752224008695
0.91 kg
CPU
IPQ-5010
Cores
2
CPU Frequency
800 MHz
CPU Architecture
ARM 64bit
RAM
256 MB
OS
RouterOS v7
RouterOS License
4
Storage
128 MB
10/100/1000 Ethernet ports
1
USB ports
0
SIM slots
1 (nano)
Wireless 2.4 GHz generation
Wi-Fi 6
Wireless 2.4 GHz Max data rate
287 Mbit/s
2.4 GHz Wifi chains
1
2.4 GHz antenna gain (dBi)
3.9
DC inputs
2
2-pin terminal input voltage
12-57 V
PoE in
802.3af/at
PoE-in input Voltage
18-57 V
PoE-out type
Passive PoE up to 57V
Max power consumption
9 W / 9 W
LTE Category
DL: 10, UL: 5Mbps
LTE FDD bands
1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
Bluetooth version
5.1
IP Rating
IP66
