Mikrotik LHGG LTE7 kit outdoor 4G router
An affordable high speed Internet solution for the most remote areas with a CAT7 modem and doubled upload speed, 17 dBi long-range antenna and rugged grid design.
Brochure: LHGG LTE7 kit.pdf
Notify me when in stock
Drop your email and we'll let you know the moment it's back.

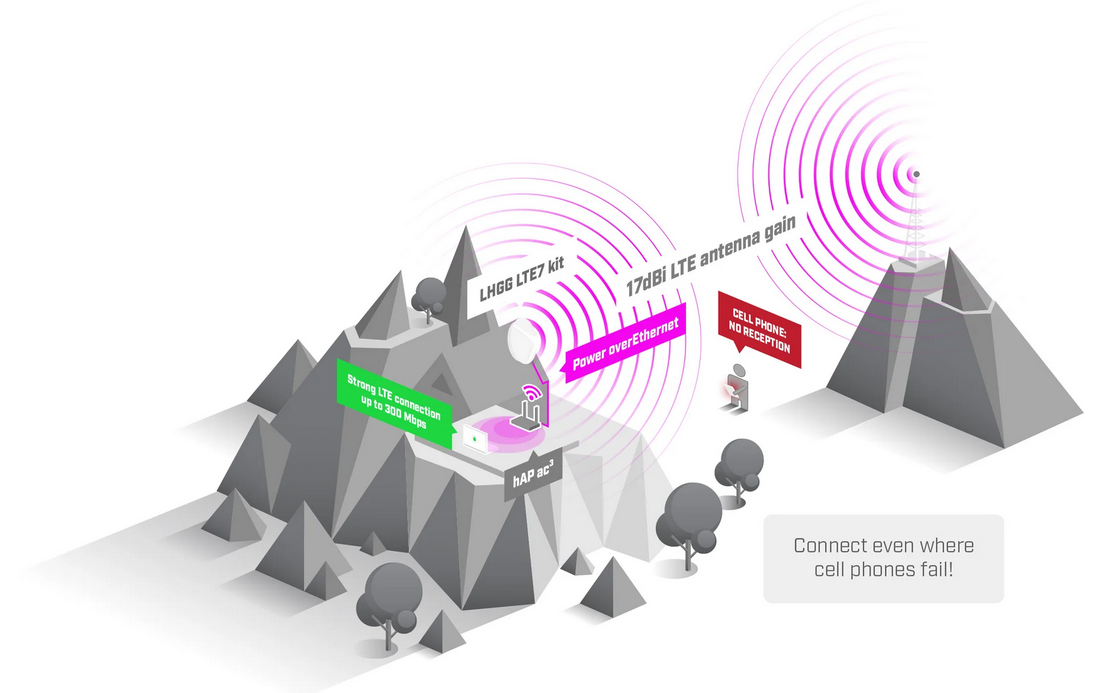

The LHGG LTE7 kit is designed for reliable “last mile” Internet access in remote locations. Mount it outdoors on a pole or mast and connect even where cell phones fail. Equipped with a high-gain 17 dBi directional antenna and a CAT7 LTE modem with up to 100 Mbps upload speed, it delivers stronger performance and better responsiveness in rural and high-demand environments. The doubled uplink capacity makes it better suited for video surveillance, VPN, remote work, and multi-user rural deployments.
The lightweight grid antenna design reduces wind load while maintaining high gain. And it can be mounted in different ways, including poles and masts. A durable enclosure and operating temperature range from -40°C to +70°C ensure reliable performance in demanding climates. Finally, a massive heat sink keeps the system stable even under continuous load.
Don’t wait for the cable networks to reach you – choose the LHGG LTE7 kit and always stay connected !
- CPU
- 88F3720
- Cores
- 2
- CPU Frequency
- 800 MHz
- CPU Architecture
- ARM 64bit
- RAM
- 256 MB
- OS
- RouterOS v7
- RouterOS License
- 3
- Storage
- 16 MB
- 10/100/1000 Ethernet ports
- 1
- miniPCIe
- 1
- SIM slots
- 1
- DC inputs
- 1
- PoE in
- 802.3af/at
- PoE-in input Voltage
- 12-57 V
- Max power consumption
- 8 W / 8 W
- LTE Category
- 7 (DL: 300 Mbps; UL: 100 Mbps)
- LTE FDD bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz) / 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz)
- LTE TDD bands
- 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 39 (1900 MHz)
- 3G Category
- R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz)
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- IP
- 54
