Mikrotik wAP ax LTE7 kit 4G WIFI router

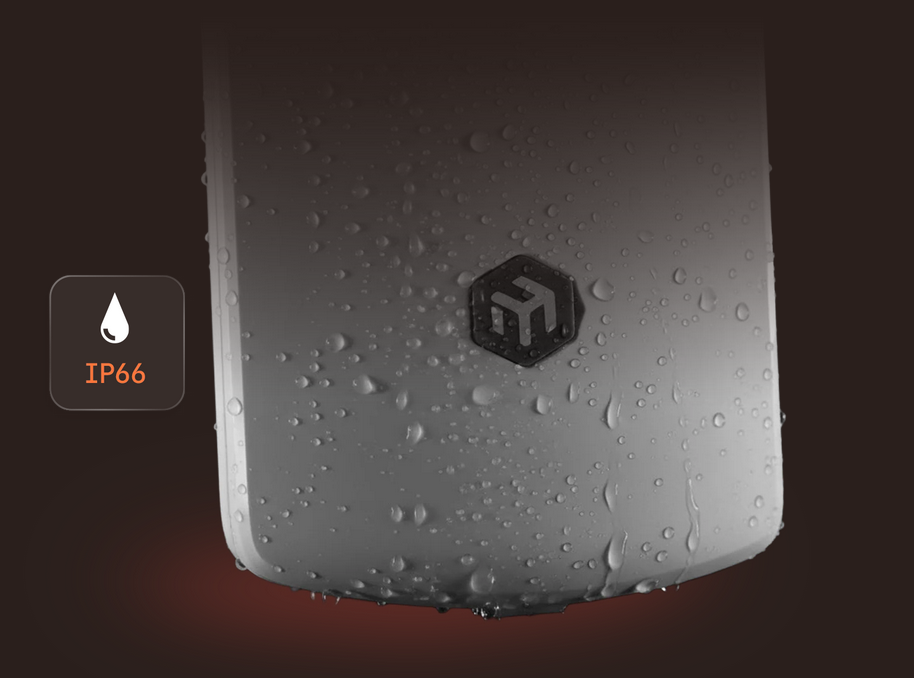

Powerful and versatile dual-band ax wireless access point with Wi-fi 6, CAT7 LTE, a strong ARM platform, and improved antenna gain. The unit comes in an improved next-gen IP66 weatherproof enclosure.
Brochure: wAP ax LTE7.pdf
wAP ax LTE7 kit brings fast and reliable Wi-Fi 6 to your countryside getaway or any other challenging environment – like a rural gas station or a bus stop. The updated enclosure enhances durability even further and features a concealed anti-vandal screw behind the MikroTik logo for added security.
A mighty dual-band, dual-chain (2x2 MIMO) radio ensures strong wireless coverage across your home, yard, or business premises – enhanced by higher antenna gain and a redesigned LTE antenna system for improved signal quality, greater range, and better stability in challenging environments.
Enhanced Hardware for Uninterrupted Connectivity and Simple Management
This compact access point is equipped with a modern dual-core ARM CPU and runs on RouterOS v7, ensuring stable internet and excellent VPN performance across your property. The wAP ax LTE7 kit also supports our new CAPsMAN for easy centralized management of multiple devices with just a few clicks. The device features two Gigabit Ethernet ports, with PoE-in on one for flexible powering options. You can also use the standard DC jack – because we believe in giving you options.
Stealthy Design – Weatherproof and Vandalproof
wAP ax LTE7 kit is designed to blend into any environment. Its simple, elegant design doesn’t attract any unwanted attention, making it perfect for busy public spaces or private properties alike. wAP can be securely fixed to any external wall or roof from the inside of the case. A designated indentation at the back of the enclosure marks the drill point for a cable pass-through, enabling discreet and secure wall-mounted installations.
- CPU
- IPQ-5010
- Cores
- 2
- CPU Frequency
- 800 MHz
- CPU Architecture
- ARM 64bit
- RAM
- 256 MB
- OS
- RouterOS v7
- RouterOS License
- 4
- Storage
- 128 MB
- Ethernet Combo ports
- 0
- 10/100/1000 Ethernet ports
- 2
- USB ports
- 0
- SIM slots
- 1
- Wireless 2.4 GHz Max data rate
- 574 Mbit/s
- 2.4 GHz Wifi chains
- 2
- 2.4 GHz antenna gain (dBi)
- 6.9
- Wireless 5 GHz Max data rate
- 1200 Mbit/s
- 5 GHz Wifi chains
- 2
- 5 GHz antenna gain (dBi)
- 7.0
- DC inputs
- 2
- DC input Voltage
- 12-57 V
- PoE in
- 802.3af/at
- PoE-in input Voltage
- 18-57 V
- Max power consumption
- 13 W
- LTE Category
- 7 (DL: 300 Mbps; UL: 100 Mbps)
- LTE FDD bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz) / 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz)
- LTE TDD bands
- 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz)
- 3G Category
- R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz)
- IP
- 66
